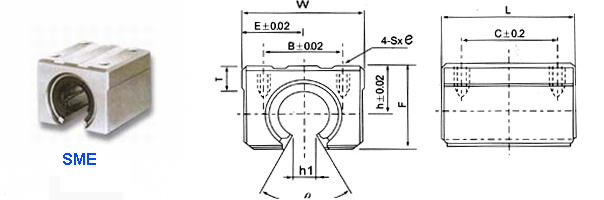

Slide Unit SME Type-This type is a metric dimension series generally used in Europe
Unit Destination  Main Dimensions Mounting dimensions Slide Bush Weight (g)
h E W L F T h1 ¦È B C S¡Á§Ö Destination Basic load Rating
C¡¡¡¡Co
SME16UU 20 22.5 45 45 33 9 10 80¡ã 32 30 M5¡Á12 LM16UU-OP 79 120 150
SME20UU 23 24 48 50 39 11 10 60¡ã 35 35 M6¡Á12 LM20UU-OP 90 140 200
SME25UU 27 30 60 65 47 14 12 50¡ã 40 40 M6¡Á12 LM25UU-OP 100 160 450
SME30UU 33 35 70 70 56 15 14 50¡ã 50 50 M8¡Á18 LM30UU-OP 160 280 630
SME35UU 37 40 80 80 63 18 16 50¡ã 55 55 M8¡Á18 LM35UU-OP 170 320 925


Want to know more about our products, please feel free to contact with us!
