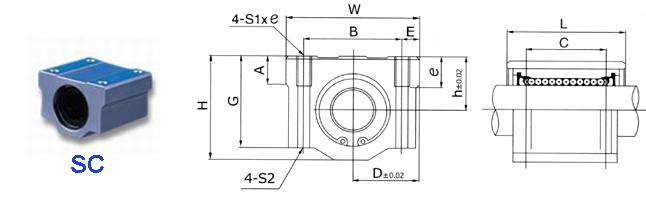

Slide Unit SC Type-This type is a metric dimension series generally used in Europe

Seal Type

Main Dimensions(mm)

 Basic Load Rating
C ¡¡Co
Nomial Part No  Weight (g) h D W H G A B E S1¡Á§Ö S2 C L N ¡¡N
SC6UU 34 9 15 30 18 15 6 20 5 M4¡Á8 3.4 15 25 206  265
SC8UU 56 11 17 34 22 18 6 24 5 M4¡Á8 3.4 18 30 274  392
SC10UU 90 13 20 40 26 21 8 28 6 M5¡Á12 4.3 21 35 372  549
SC12UU 112 15 21 42 29 25 8 30.5 5.75 M5¡Á12 4.3 26 36 510  784
SC13UU 123 15 22 44 30 26 8 33 5.5 M5¡Á12 4.3 26 39 510  784
SC16UU 189 19 25 50 38.5 35 9 36 7 M5¡Á12 4.3 34 44 774  1180
SC20UU 237 21 27 54 42 36 11 40 7 M6¡Á12 5.2 40 50 882  1370
SC25UU 555 26 38 76 51.5 41 12 54 11 M8¡Á18 7 50 67 980  1570
SC30UU 685 30 39 78 59.5 49 15 58 10 M8¡Á18 7 58 72 1574  2740
SC35UU 1100 34 45 90 68 54 18 70 10 M8¡Á18 7 60 80 1670  3140
SC40UU 1600 40 51 102 78 62 20 80 11 M10¡Á25 8.7 60 90 2160  4020
SC50UU 3350 52 61 122 102 80 25 100 11 M10¡Á25 8.7 80 110 3820  7940
