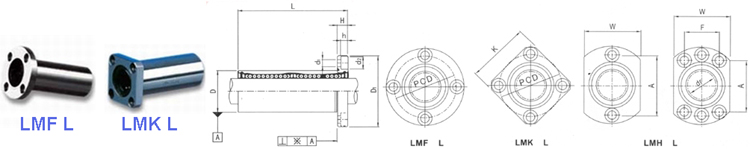

LMEF/K/H L Series-This type is a metric dimension series generally used in Europe
|
LMEF/K/H L Series-This type is a metric dimension series generally used in Europe |
|
|
| Nominal Part NO. | Eccentricity (max) ¦Ìm | Radial Clearance (max) ¦Ìm | Basic Load Rating | dr (mm) | Tolerance (¦Ìm) | |||
| C Co | ||||||||
| Seal Type | Ball Circuit | Weight (g) | N N | |||||
| LMEF8LUU | LMEK8LUU | 4 | 59 | 15 | -3 | 421 804 | 8 |
+9 -1 |
| LMEF12LUU | LMEK12LUU | 4 | 110 | 15 | -4 | 813 1570 | 12 | |
| LMEF16LUU | LMEK16LUU | 5 | 160 | 15 | -4 | 921 1780 | 16 |
+11 -1 |
| LMEF20LUU | LMEK20LUU | 5 | 260 | 17 | -6 | 1370 2740 | 20 | |
| LMEF25LUU | LMEK25LUU | 6 | 540 | 17 | -6 | 1570 3140 | 25 |
+13 -2 |
| LMEF30LUU | LMEK30LUU | 6 | 815 | 17 | -8 | 2500 5490 | 30 | |
| LMEF40LUU | LMEK40LUU | 6 | 1805 | 20 | -8 | 3430 8040 | 40 |
+16 -4 |
| LMEF50LUU | LMEK50LUU | 6 | 2820 | 25 | -13 | 6080 15900 | 50 | |
| LMEF60LUU | LMEK60LUU | 6 | 4920 | 25 | -13 | 7550 20000 | 60 | |
| Main Dimensions and Tolerance(mm) | Ncmina Part | |||||||||
| NO | ||||||||||
| D (mm) | Tolerance ¦Ìm | L (mm) | Tolerance ¦Ìm | D1 (mm) | Tolerance (¦Ìm) | H | PCD | K | d1¡Ád2¡Áh | ¡¡ |
| 16 | 0/-9 | 46 |
0 -300 |
32 | 0 -200 |
5 | 24 | 25 | 3.5¡Á6¡Á3.1 | LMEF/K/8LUU |
| 22 |
0 -11 |
61 | 42 | 6 | 32 | 32 | 4.5¡Á7.5¡Á4.1 | LMEF/K/12LUU | ||
| 26 | 68 | 46 | 6 | 36 | 35 | 4.5¡Á7.5¡Á4.1 | LMEF/K/16LUU | |||
| 32 | 80 | 54 | 8 | 43 | 42 | 5.5¡Á9¡Á5.1 | LMEF/K/20LUU | |||
| 40 |
0 -13 |
112 | 62 | 8 | 51 | 50 | 5.5¡Á9.5¡Á5.4 | LMEF/K/25LUU | ||
| 47 | 123 |
0 -400 |
76 | 0 -300 |
10 | 62 | 60 | 6.6¡Á11¡Á6.1 | LMEF/K/30LUU | |
| 62 |
0 -15 |
151 | 98 | 13 | 80 | 75 | 9¡Á14¡Á8.1 | LMEF/K/40LUU | ||
| 75 | 192 | 112 | 13 | 94 | 88 | 9¡Á14¡Á8.1 | LMEF/K/50LUU | |||
| 90 | 0/-20 | 209 | 134 | 18 | 112 | 106 | 11¡Á17¡Á11.1 | LMEF/K/60LUU | ||
|
|
