SF-1W Self
Lubricating Bushing
is a new type bushing
without lead composition which is develop aiming art increasing demands on
environmental protection, Besides it's wide application on general machines,
SF-1W is particularly suitable for food machine, Pharmaceutical machine,
tobacco machine etc.
¡¡ |
 |
Color Metallograph
 ---PTFE
with Fibre, 0.01~0.03mm
---Porous bronze, 0.2~0.3mm
(CuSn8Zn3:Sn<=8%;Zn<=3%;Other<=1%;Cu=Balance)
--Steel backing, 0.7~2.3mm
---Copper(0.008mm) or
Tin(0.005mm) Plating |
|
|
Steel Backing Technical Data |
|
Code |
Equal Code |
Chemical Composition% |
Physical Properties |
|
ASTM |
DIN |
BS |
JIS |
C |
Mn |
P |
S |
Al |
Yield Strength
<=N/mm2 |
Tensile Strength
N/mm2 |
Elongation
% |
|
ST12 |
1010
1008 |
CK10(1.1121)
C10(1.0301) |
040A10
050A10
060A10 |
S10C
S09CK |
0.10 |
0.5 |
0.035 |
0.035 |
-- |
280 |
270~410 |
28 |
Physical Properties |
|
Load Capacity |
Temperature
Limit |
PV Limit
(dry) |
PV Limit
(oil) |
Friction Coef |
Speed Limit |
|
140N/mm2 |
-195¡æ~280¡æ |
3.6N/mm2 |
50N/mm2 |
0.04~0.20 |
10m/s |

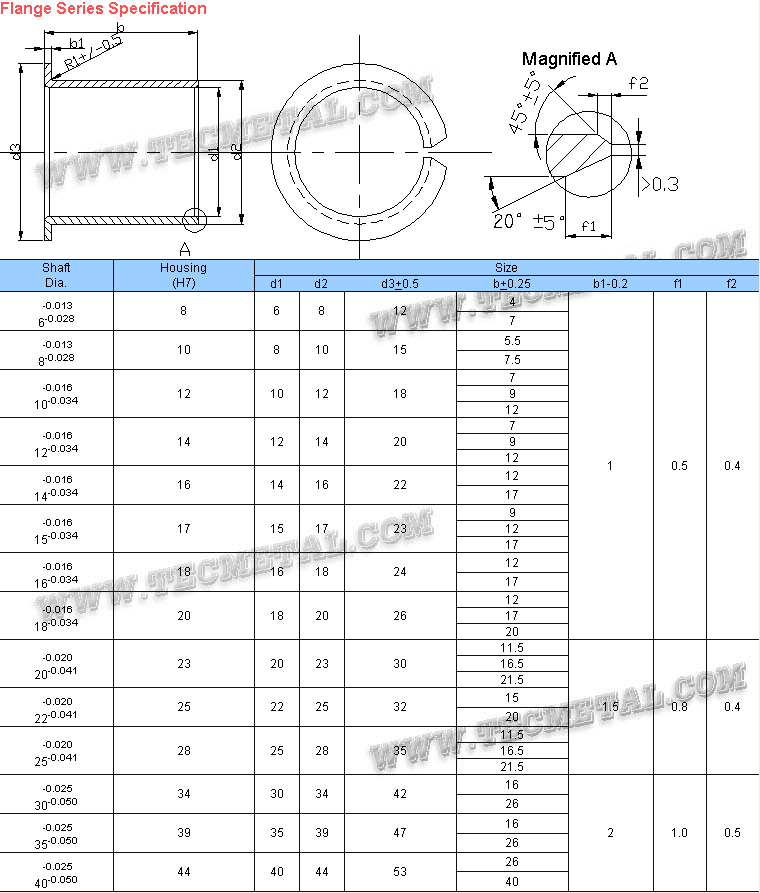

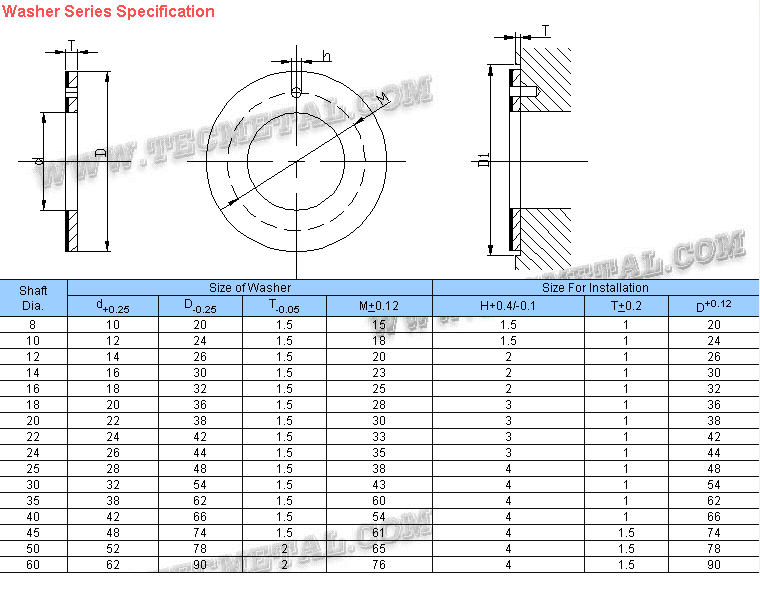

Size Specification
Application Case |
1. It is
efficient even under sudden break off the lubricating oil, wear resistant,
and so can keep the lubricating oil clear after long period of
working.
2. It can protect the mating surface from wearing,
3. It is particularly suitable for bushed in reciprocating motion.
4. It is suitable for the machine requiring harmless to people because of
lead-free.
5. It is used in shock shock absorber of motorcycles and various hydraulic
cylinders, hydraulic motor and pneumatic elements etc. |
 |
