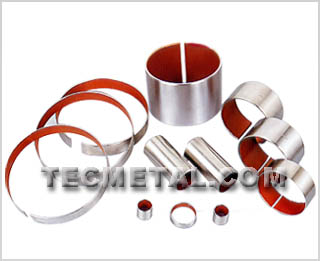

SF-1SS Self
Lubricating Bushing
stainless
bushing with plastic coated is based on stainless steel spay-painted PTFE on
the surface. It is of anti-acid, anti-alkali, anti-salty liquid and can be
widely used in chemical industry such as acid/alkali flow indicator, pumps,
valves etc and also in the sliding position where anti-corrosion is a
necessity mostly in sea industry.
¡¡
Color Metallograph
---PTFE with Fibre, 0.01~0.03mm
---Stainless steel backing, 0.7~2.3mm |
|
 |
|
Stainless
Steel Backing Technical Data |
|
Code |
Equal Code |
Chemical Composition% |
|
ASTM |
DIN |
BS |
JIS |
C |
Mn |
P |
S |
Si |
Ni |
Cr |
Mo |
|
0Cr17Ni12Mo2
|
316 |
X5CrNiMo1812
|
316S16
|
SUS316
|
0.08 |
2.00 |
0.04 |
0.03 |
1.00 |
10~14.0 |
16~18 |
2.0¡«3.0 |
|
0Cr18Ni9
|
304 |
X2CrNi89
|
304S15
|
SUS304
|
0.08 |
2.00 |
0.04 |
0.03 |
1.00 |
8.0~11.0 |
18~20 |
-- |
Physical Properties |
|
Load Capacity |
Temperature
Limit |
PV Limit
(dry) |
PV Limit
(oil) |
Friction Coef |
Speed Limit |
|
140N/mm2 |
-190¡æ~280¡æ |
3.0N/mm2 |
40N/mm2 |
0.03~0.18 |
2.5m/s |
Size Specification
Application Case |
1. PTFE with oil
fibre can protect the shaft while machine in operation.
2. It is of low friction coefficient, good anti-wear.
3. Good running in property.
4. It fits well in motion of circumrotation, sway and to-and-fro.
5. Good anti-corrision.
6. It can be used in food machine, Pharmaceutical machine etc. due t
lead-free.
7. Besides the same function of SF-1P, SF-1D in particular fits frequently
reciprocating motion with a high side force, it is widely used in
automobile, motor damper and oil pump etc. |
 |
