Color Metallograph ---PTFE
with Cu, 0.01~0.03mm---Porous bronze, 0.2~0.3mm (CuSn8Zn3:Sn<=8%;Zn<=3%;Cu=Balance) --Steel backing, 0.7~2.3mm ---Copper(0.008mm) or Tin(0.005mm) Plating |
|

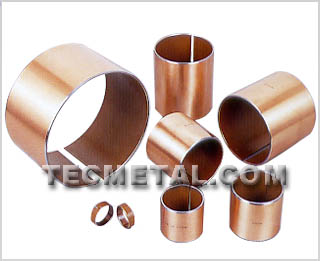

SF-1P
self lubricating bushing is particularly suitable for bushed in reciprocating motion, and the
properties are similar to that of the foreign product designated as Dd2. It
is wear resistant, and so can keep the lubricating oil clear after long
period of working. Meanwhile it can protect the mating surface from wearing,
It is widely used as oil damping vibrating absorber of automobiles,
motorcycles and various hydraulic cylinders, hydraulic motors and pneumatic
elements. ¡¡ |
|
|
|
|
||||||||||||
| Code | Equal Code | Chemical Composition% | Physical Properties | |||||||||
| ASTM | DIN | BS | JIS | C | Mn | P | S | Al |
Yield Strength <=N/mm2 |
Tensile Strength N/mm2 |
Elongation % |
|
| ST12 |
1010 1008 |
CK10(1.1121) C10(1.0301) |
040A10 050A10 060A10 |
S10C S09CK |
0.10 | 0.5 | 0.035 | 0.035 | -- | 280 | 270~410 | 28 |
|
Physical Properties |
|||||
| Load Capacity | Temperature Limit | PV Limit (dry) | PV Limit (oil) | Friction Coef | Speed Limit |
| 140N/mm2 | -195¡æ~280¡æ | 3.6N/mm2 | 50N/mm2 | 0.04~0.20 | 2.5m/s |
|
Size Specification    Application Case |
 1. It is
efficient even under sudden break off the lubricating oil, wear resistant,
and so can keep the lubricating oil clear
after long period of working.2. It can protect the mating surface from wearing, 3. It is particularly suitable for bushed in reciprocating motion. 4. It is suitable for the machine requiring harmless to people because of lead-free. 5. It is used in shock shock absorber of motorcycles and various hydraulic cylinders, hydraulic motor and pneumatic elements etc |
