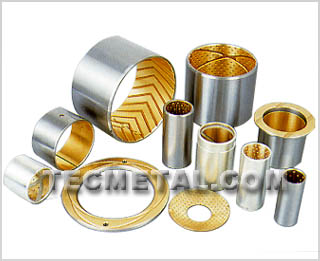

JF-800
bimetal bushing is based upon steel and sintered with
CuPb10Sn10 or CuSn6Zn6Pb3 as a lining layer. This type is the best
performance within the range of Cu-Pb alloy bushings. It can be used in
balance suspensions of heavy-duty vehicles, wheel of bulldozers, auto
chassis and so on. It's mostly suitable for middle speed and high impact
occasions. |
 |
|
|
Bronze Backing Technical Data |
||||||||||
|
Bronze Alloy |
Equivalent Standard Code |
Composition analysis of alloy |
||||||||
| Pb | Sn | Zn | P | Fe | Ni | Sb | Other | Cu | ||
| Cu Pb10Sn10 |
ASTM C93700; GLYCO 66; JIS-LBC3 |
9.0~11.0 | 9.0~11.0 | 0.5 | 0.1 | 0.7 | 0.5 | 0.2 | 0.5 | remainder |
Physical Characteristic |
|||||
| Load Capacity | Tensile Strengthen | Friction Coef (oil) | Speed Limit | PV Limit (grease) | PV Limit (oil) |
| 150N/mm2 | 185N/mm2 | 0.06~0.14 | 5m/s | 2.8N/mm2 | 10N/MM2 |

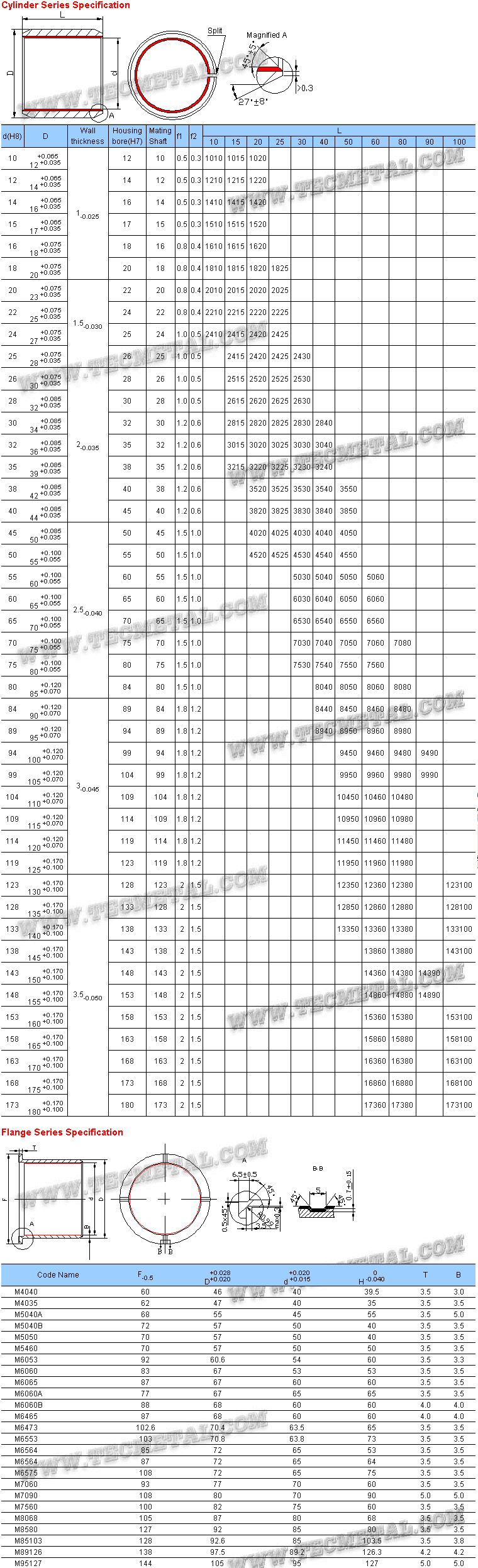

Specification |
 |
