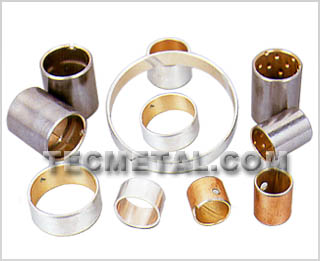

JF-720 is bimetal bushing with steel as backing and sintered CuPb24Sn4 as lining layer. This type has fairly good performance in anti-fatigue and load capacity. It is suitable for middle speed and middle load. When over plated certain soft alloy, it can be applied in high-speed internal combustion engine and as connect-rod bushing. |
 |
|
|
|
||||||||||
| Bronze Alloy Code | Equivalent Standard Code | Composition analysis of alloy | ||||||||
| Pb | Sn | Zn | P | Fe | Ni | Sb | Other | Cu | ||
| CuPb24Sn4 | SEA-799;GLYCO 68;JIS-LBC6 | 21~27 | 3~4.5 | 0.5 | 0.1 | 0.7 | 0.5 | 0.2 | 0.5 | remainder |
Physical Characteristic |
|||||
| Load Capacity | Tensile Strengthen | Friction Coef (oil) | Speed Limit | PV Limit (grease) | PV Limit (oil) |
| 130N/mm2 | 150N/mm2 | 0.06~0.16 | 10m/s | 2.8N/mm2 | 10N/MM2 |
Specification |
 |
