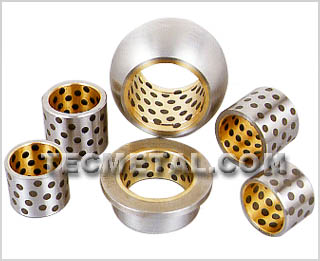

JDB-3 has almost the same structure as JDB-2. It is based on a bimetal material, which is sintered CuSn6Zn6Pb3 as a lining on its steel backing, likewise embedded with solid lubricant. It saves cost, improves compress strength and is also jointing between bush' end and machine part. It is Suitable for low load position, wear performance worsens when under middle or high load. The mating layer is same as JDB-2 so that more cost-saving than JDB-2 where as compression strength increases and weldable. Most suitable for dry position in construction, metallurgical machines, conveyor machines etc.

Physical Characteristic
