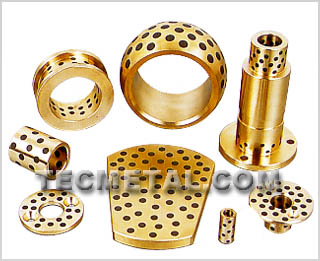

JDB-2 is based on bronze CuSn6An6Pb3 and evenly embedded with a solid under low load, high temperature and middle speed, e.g. gemel in furnace gate, convey way of the baking furnace, light industry and tooling machine industry.

¡¡
Material Structure and Composition
 Solid Lubricant Inserts



Bronze(CuSn6Zn6Pb3)


Physical Characteristic
Load Capacity Hardness Friction Coef (¦Ì) Temperature max PV Limit Speed Limit
60N/mm2 HB80~100 <0.15 -40~300¡æ 1.65N/mm2 2m/s

Mechanical Properties
Density
g/cm3		 Expansion Coefficient
X10-5/¡æ		 Impact tenacity
>KJ/m3		 Heat conduction Coefficient
W (m*k)		 Elongation
>%		 Pressure Resistant Strength
>N/mm2		 Elasticity Coefficient
KN/mm2
8.2 1.6~2.0 300~400 38~55 12 755 100~140


Specification Size
