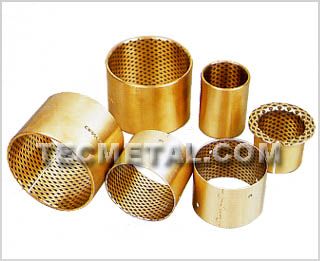

FB09G is based on high density phosphor-bronze alloy and cove up solid lubricant on surface. As the high strength, high load of base material and with high polymer-filled diamond indents. So, it is suitable for bushing and thrust washer applications where the available lubrication is sometimes not adequate. For example, in the starter motor or around the king-pin.
Profile

1.Solid Lubricant

2.Phosphor-Bronze

Mechanical Performance
Type Tensile (N/mm2) Yield Strength    (N/mm2) Elongation(%) Hardness (HB)
FB09G  450 250 >12 90~110

Physical Characteristic
Type SP,GR
g/cm3		  linear expansion
20~250¡æ  10-6/¡æ		 Heat conductivity
20¡æ    w/ohm*mm2		  Ltroty conductivity
20¡æ   w/m*k 		Elastic modulus
KN/mm2		 Friction coeff
¦Ì
FB09G 8.2 20 62 7 110 <0.10(oil);<0.25(dry)

Load Capability
Type ¡¡ MAX DYNAMIC LOAD
(N/mm2)		 MAX SLIDING SPEED
(m/s)		 MAX TEMP
(¡æ)		 WORK CONDITION
FB09G DRY 80 0.2 250 High Load
OIL 100 1 100 Low speed
